FD5-24

  • BRVN:
    BRVN-FD5-24
  • MPN:
    FD5-24
  • MFR:
  • Description:
    PWR XFMR LAMINATED 12VA CHAS MT
Datasheet
FD5-24

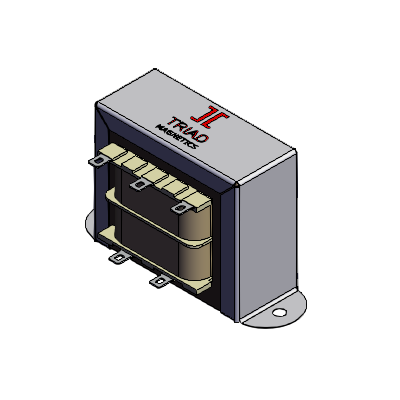

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: PWR XFMR LAMINATED 12VA CHAS MT
  • Manufacturer: Triad Magnetics
  • Length: 0 mm
  • Series: Quick Pack
  • Product Status: Active
  • Mounting Type: Chassis Mount
  • Type: Laminated Core
  • Size / Dimension: 71.42mm L x 34.93mm W
  • Height - Seated (Max): 41.28mm
  • Voltage - Primary: 115V, 230V
  • Voltage - Secondary (Full Load): 24V
  • Current - Output (Max): 500mA
  • Primary Winding(s): Dual
  • Secondary Winding(s): Single
  • Center Tap: Yes
  • Power - Max: 12VA
  • Termination Style: Solder, Quick Connect - 0.187" (4.7mm)
  • Voltage - Isolation: 2500VAC
  • Weight: 0.7 lb (317.51 g)
