FNRC64SXX2X

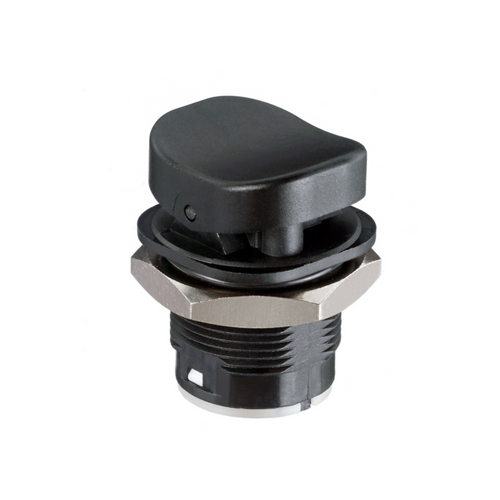

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SWITCH ROCKER SEALED SOLDER
- Manufacturer: APEM
- Length: 0 mm
- Series: FNR
- Product Status: Active
- Mounting Type: Panel Mount, Threaded Body with Nut
- Circuit: DPDT
- Switch Function: On-On
- Current Rating (Amps): 1A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 24 V
- Actuator Type: Concave (Curved)
- Illumination Type, Color: -
- Illumination Voltage (Nominal): -
- Termination Style: Solder Lug
- Panel Cutout Dimensions: Circular - 20.20mm Dia
- Ingress Protection: IP69K - Dust Tight, High Temp Water Jets, Waterproof
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Color - Actuator/Cap: Black
- Actuator Marking: No Marking
-
- Datasheet: BRVN-FNRC64SXX2X
