FSA-P-500MA

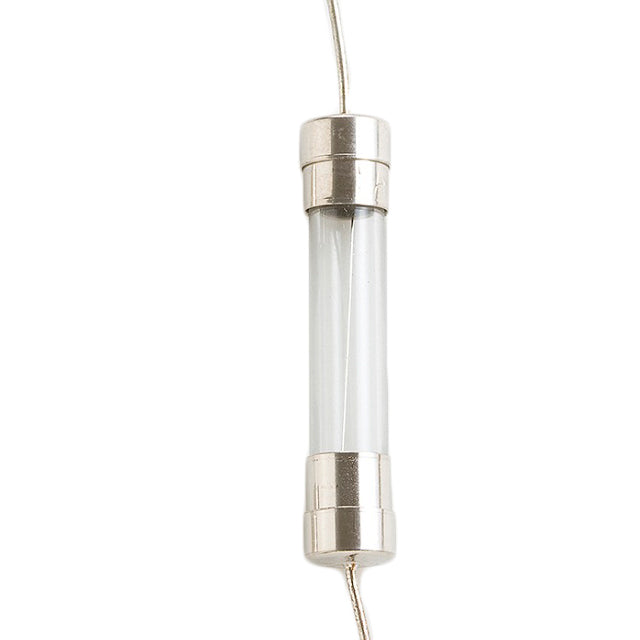

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $0.78 | $0.78 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: GLASS FUSE-6.3X32MM, FAST 500MA
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: FSA
- Product Status: Active
- Voltage Rating - AC: 250 V
- Current Rating (Amps): 500 mA
- Approval Agency: CSA, cULus, UR
- Package / Case: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Size / Dimension: 0.270" Dia x 1.276" L (6.85mm x 32.40mm)
- Fuse Type: Cartridge, Glass
- Voltage Rating - DC: -
- Response Time: Fast Blow
- Breaking Capacity @ Rated Voltage: 35A
- Melting I²t: 0.112
- Color: -
-
- Datasheet: BRVN-FSA-P-500MA
