FSH-15A

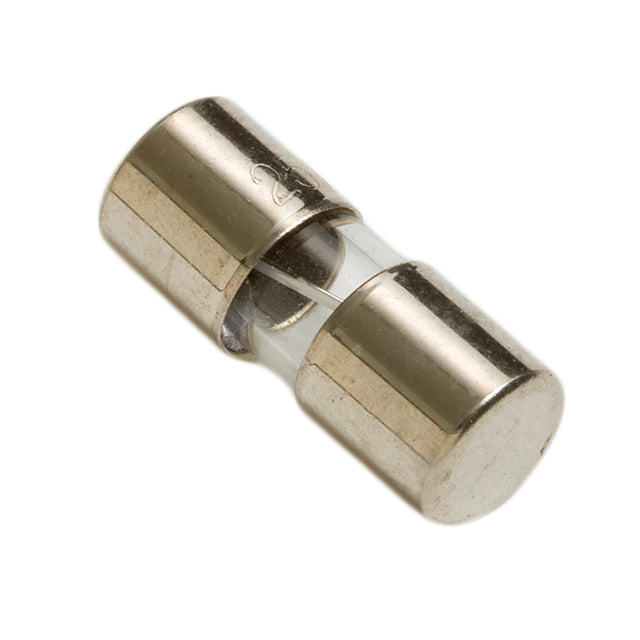

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: AUTO GLASS - 1/4"X5/8", FAST 15A
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: FSH
- Product Status: Active
- Voltage Rating - AC: 125 V
- Current Rating (Amps): 15 A
- Approval Agency: cURus, PSE/JET
- Package / Case: 1AG, 1/4" x 5/8"
- Operating Temperature: -
- Mounting Type: Requires Holder
- Size / Dimension: 0.250" Dia x 0.626" L (6.35mm x 15.90mm)
- Fuse Type: Cartridge, Glass
- Voltage Rating - DC: -
- Response Time: Fast Blow
- Breaking Capacity @ Rated Voltage: 100A
- Melting I²t: -
- Color: -
-
- Datasheet: BRVN-FSH-15A
