FXG-2.25A

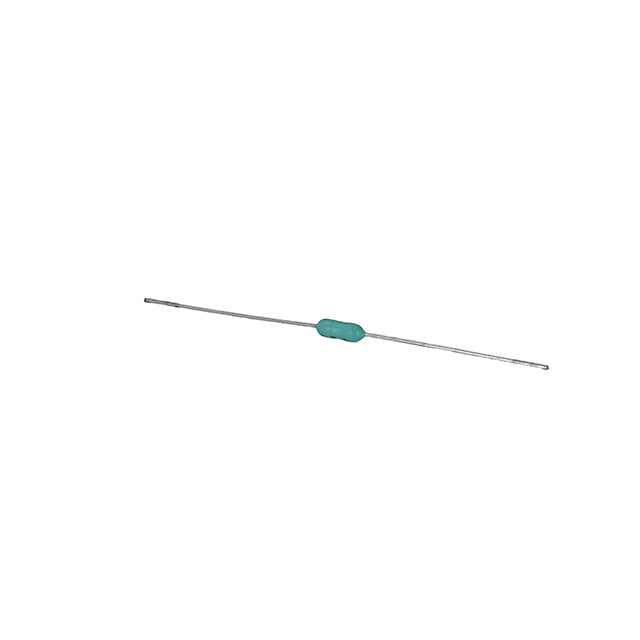

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $0.80 | $0.80 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: THRU HOLE 2.7X7.3MM, FAST 2.25A
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: FXG
- Product Status: Active
- Voltage Rating - AC: 250 V
- Current Rating (Amps): 2.25 A
- Approval Agency: CSA, cULus
- Package / Case: Axial
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Size / Dimension: 0.110" Dia x 0.290" L (2.80mm x 7.37mm)
- Fuse Type: Board Mount (Cartridge Style Excluded)
- Voltage Rating - DC: -
- Response Time: Fast Blow
- Breaking Capacity @ Rated Voltage: 50A
- Melting I²t: 1.076
- Color: -
-
- Datasheet: BRVN-FXG-2.25A
