GBJ5010_T0_00601

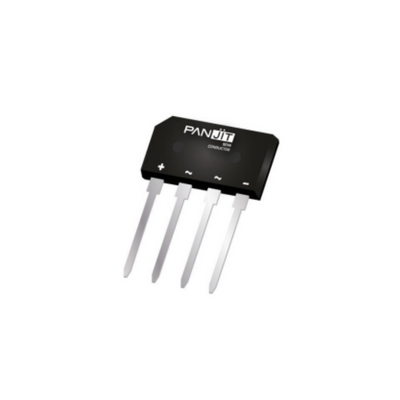

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: GBJ PACKAGE, 50A/1000V STANDARD
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: 4-SIP, GBJ
- Supplier Device Package: GBJ-2
- Technology: Standard
- Current - Reverse Leakage @ Vr: 5 µA @ 1000 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 25 A
- Diode Type: Single Phase
- Current - Average Rectified (Io): 50 A
- Voltage - Peak Reverse (Max): 1 kV
-
- Datasheet: BRVN-GBJ5010_T0_00601
-
- ECCN: EAR99
- HTSUS: 8504400000
