GS1510FL_R1_00001

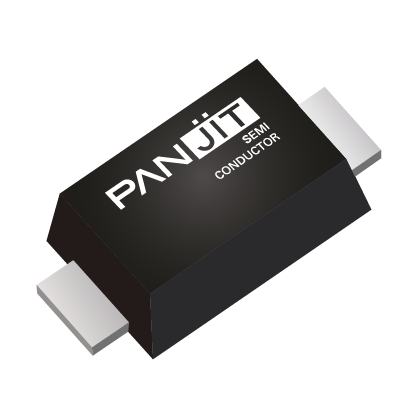

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DIODE GEN PURP 1000V 1.5A SOD123FL
- Manufacturer: PANJIT
- Length: 0 mm
- Series: GSM-15AAFL
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: SOD-123FL
- Current - Reverse Leakage @ Vr: 1 µA @ 1000 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 1.5 A
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io): 1.5A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Capacitance @ Vr, F: 10pF @ 4V, 1MHz
- Operating Temperature - Junction: -55°C ~ 150°C
-
- Datasheet: BRVN-GS1510FL_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
