HCC24-2.4-AG
-
BRVN:BRVN-HCC24-2.4-AG
-
MPN:HCC24-2.4-AG
-
MFR:
-
Description:AC/DC CONVERTER +/-24V 115W

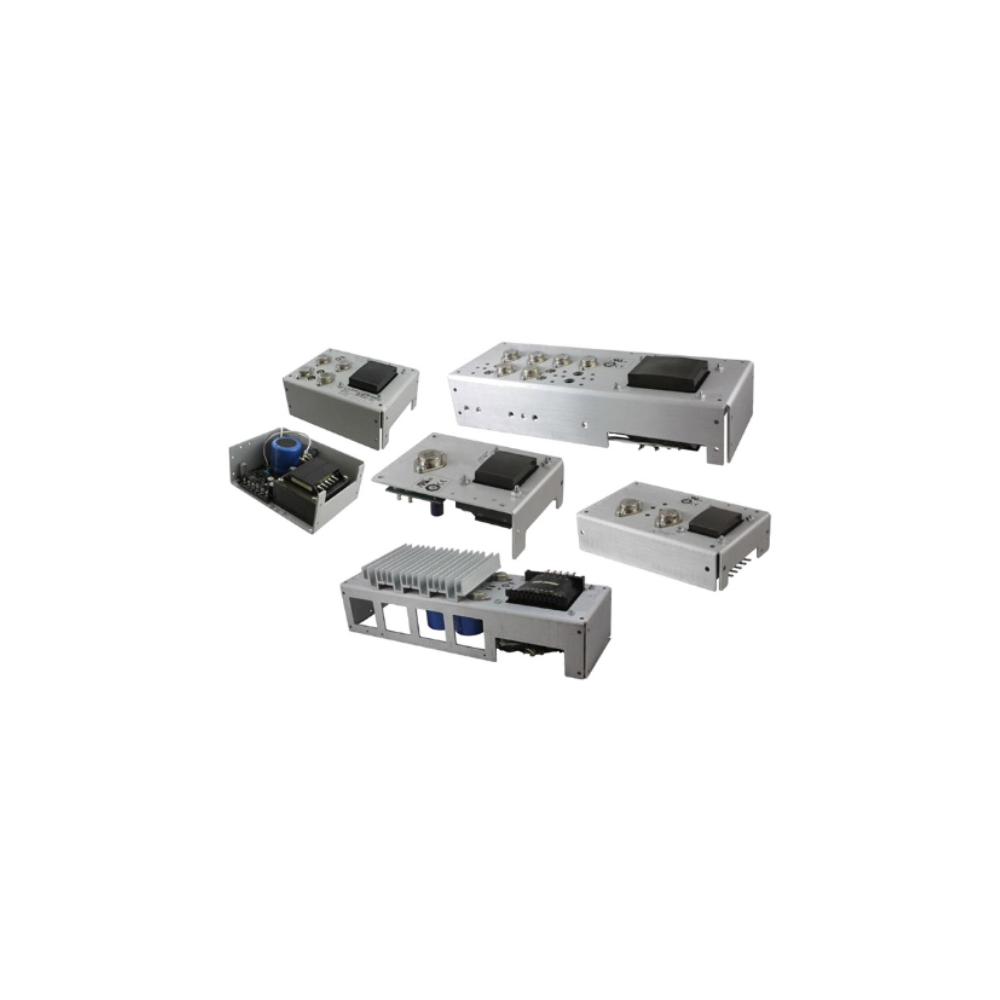

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: AC/DC CONVERTER +/-24V 115W
- Unit of Measure: EA
- Manufacturer: Bel Power Solutions
- Length: 0 mm
- Series: Linear CC
- Product Status: Active
- Type: Linear
- Applications: ITE (Commercial)
- Size Dimension: 9.38" L x 4.87" W x 3.28" H (238.3mm x 123.7mm x 83.3mm)
- Mounting Type: Chassis Mount
- Features: Adjustable Output, Remote Sense
- Voltage Input: 100, 120, 220, 230, 240 VAC
- Operating Temperature: 0°C ~ 50°C
- Approval Agency: CE, CSA, UL
- Number of Outputs: 2
- Voltage Output 1: 24V
- Voltage Output 2: -24V
- Voltage Output 3: -
- Voltage Output 4: -
- Voltage Output 5: -
- Voltage Output 6: -
- Power Watts: 115W
- Voltage Isolation: 4.242 kV
- Efficiency: 60%
- Standard Number: 60950-1; 62368-1
- Current Output 1: 2.4 A
- Current Output 2: 2.4 A
- Current Output 3: -
- Current Output 4: -
- Current Output 5: -
-
- Datasheet: BRVN-HCC24-2.4-AG
