IEC-B-1

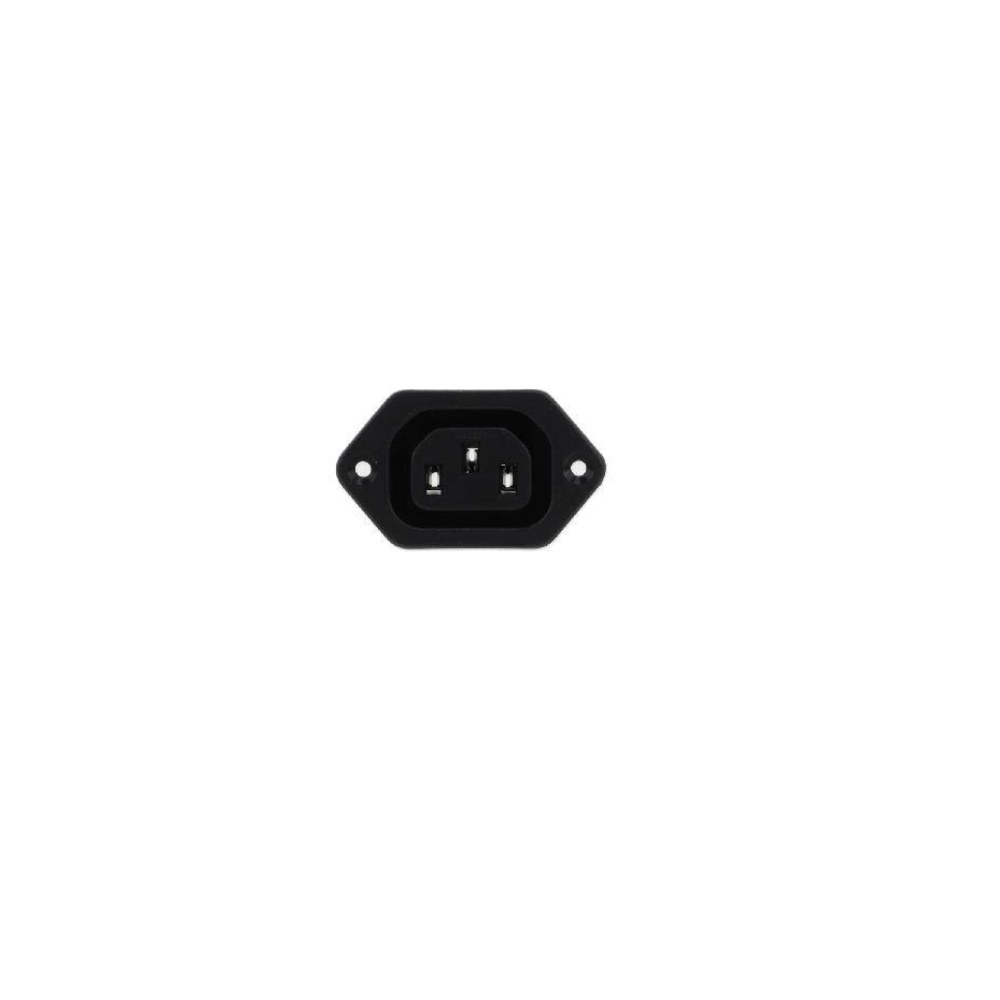

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: RECEPTACLE, INLET POWER OUTLET
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: IEC
- Product Status: Active
- Features: -
- Mounting Type: Panel Mount, Flange
- Panel Cutout Dimensions: Rectangular - 24.50mm x 32.50mm
- Ingress Protection: -
- Connector Type: Receptacle, Female Sockets
- Termination: Quick Connect - 0.187" (4.7mm)
- Number of Positions: 3
- Filter Type: Unfiltered - Commercial
- Approval Agency: CCC, cURus, ENEC
- Material Flammability Rating: UL94 V-0
- Connector Style: IEC 320-2-2/F
- Panel Thickness: -
- Current Rating Appliance Inlet: 15A
- Voltage Rating Appliance Inlet: 250VAC
- Current Rating Filter: -
- Switch Features: -
- Current Rating Circuit Breaker: -
- Accomodates a Fuse: No
- Fuse Holder Drawer: -
-
- Datasheet: BRVN-IEC-B-1
