LDRS2424MT220
-
BRVN:BRVN-LDRS2424MT220
-
MPN:LDRS2424MT220
-
MFR:
-
Description:0628, 20%, T&R, 220 Inductance (

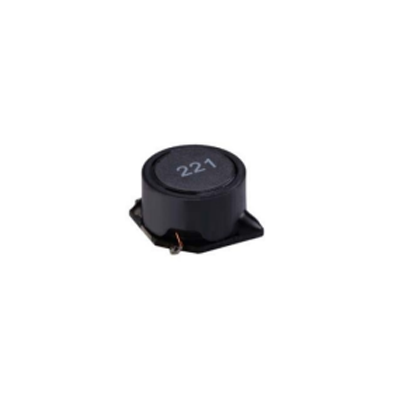

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 0628, 20%, T&R, 220 Inductance (
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: *
- Product Status: Active
- Operating Temperature: -
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 2424 (6060 Metric)
- Supplier Device Package: 2424
- Tolerance: ±20%
- Size / Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max): 0.118" (3.00mm)
- Type: -
- Material - Core: -
- Inductance: 22 µH
- Current Rating (Amps): 1.3 A
- Current - Saturation (Isat): 770mA
- Shielding: Shielded
- DC Resistance (DCR): 120mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: -
- Inductance Frequency - Test: 1 kHz
-
- Datasheet: BRVN-LDRS2424MT220
