LDRS4040MT220
-
BRVN:BRVN-LDRS4040MT220
-
MPN:LDRS4040MT220
-
MFR:
-
Description:1045, 20%, T&R, 220 Inductance (

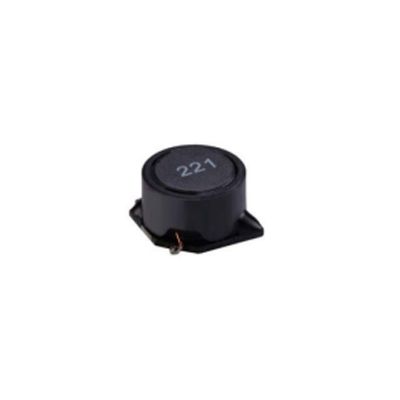

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1045, 20%, T&R, 220 Inductance (
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: *
- Product Status: Active
- Operating Temperature: -
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Tolerance: ±20%
- Size / Dimension: 0.398" L x 0.398" W (10.10mm x 10.10mm)
- Height - Seated (Max): 0.189" (4.80mm)
- Type: -
- Material - Core: -
- Inductance: 22 µH
- Current Rating (Amps): 2.1 A
- Current - Saturation (Isat): -
- Shielding: Shielded
- DC Resistance (DCR): 59mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: -
- Inductance Frequency - Test: 1 kHz
-
- Datasheet: BRVN-LDRS4040MT220
