LMCI0201-2N7ST

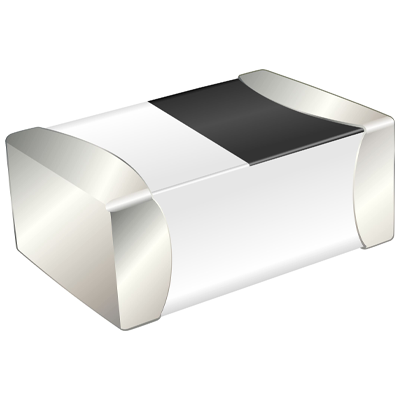

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FIXED IND 2.7NH 310MA 220MOHM SM
- Manufacturer: Venkel
- Length: 0 mm
- Series: LMCI
- Product Status: Active
- Mounting Type: Surface Mount
- Operating Temperature: -55°C ~ 125°C
- Package / Case: 0201 (0603 Metric)
- Features: -
- Supplier Device Package: 201
- Size / Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
- Type: Multilayer
- Material - Core: Ceramic
- Inductance: 2.7 nH
- Tolerance: ±0.3nH
- Current Rating (Amps): 310 mA
- Current - Saturation (Isat): -
- Shielding: Shielded
- DC Resistance (DCR): 220mOhm
- Q @ Freq: 13 @ 500MHz
- Frequency - Self Resonant: 9.2GHz
- Ratings: -
- Inductance Frequency - Test: 100 MHz
- Height - Seated (Max): 0.013" (0.33mm)
-
- Datasheet: BRVN-LMCI0201-2N7ST
