LMCI1005-33NKT

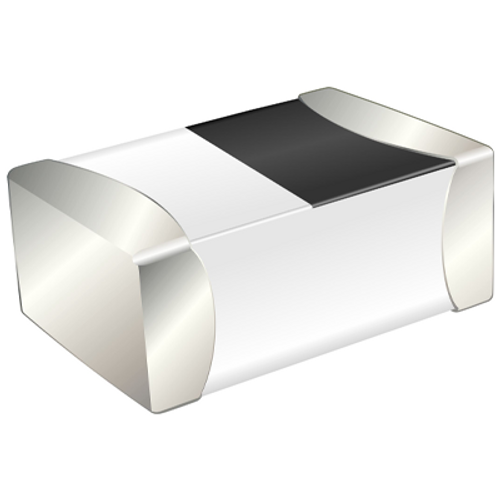

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FIXED IND 33NH 200MA 800MOHM SMD
- Manufacturer: Venkel
- Length: 0 mm
- Series: LMCI
- Product Status: Active
- Mounting Type: Surface Mount
- Operating Temperature: -55°C ~ 125°C
- Package / Case: 0402 (1005 Metric)
- Features: -
- Supplier Device Package: 402
- Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
- Type: Multilayer
- Material - Core: Ceramic
- Inductance: 33 nH
- Tolerance: ±10%
- Current Rating (Amps): 200 mA
- Current - Saturation (Isat): -
- Shielding: Shielded
- DC Resistance (DCR): 800mOhm
- Q @ Freq: 8 @ 100MHz
- Frequency - Self Resonant: 1.3GHz
- Ratings: -
- Inductance Frequency - Test: 100 MHz
- Height - Seated (Max): 0.022" (0.55mm)
-
- Datasheet: BRVN-LMCI1005-33NKT
