LMCI1608-12NKT

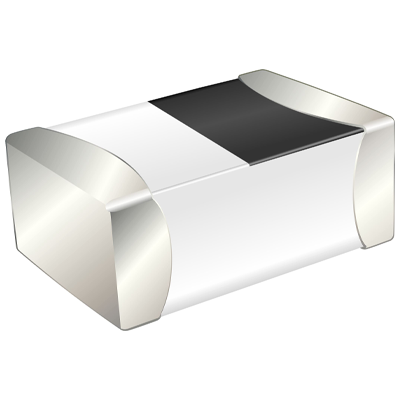

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FIXED IND 12NH 300MA 450MOHM SMD
- Manufacturer: Venkel
- Length: 0 mm
- Series: LMCI
- Product Status: Active
- Mounting Type: Surface Mount
- Operating Temperature: -55°C ~ 125°C
- Package / Case: 0603 (1608 Metric)
- Features: -
- Supplier Device Package: 603
- Size / Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
- Type: Multilayer
- Material - Core: Ceramic
- Inductance: 12 nH
- Tolerance: ±10%
- Current Rating (Amps): 300 mA
- Current - Saturation (Isat): -
- Shielding: Shielded
- DC Resistance (DCR): 450mOhm
- Q @ Freq: 12 @ 100MHz
- Frequency - Self Resonant: 3GHz
- Ratings: -
- Inductance Frequency - Test: 100 MHz
- Height - Seated (Max): 0.037" (0.95mm)
-
- Datasheet: BRVN-LMCI1608-12NKT
