LP5137MT680
-
BRVN:BRVN-LP5137MT680
-
MPN:LP5137MT680
-
MFR:
-
Description:3316, 20%, T&R, 680 Inductance (

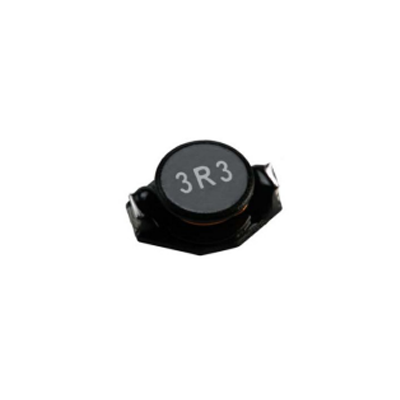

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 3316, 20%, T&R, 680 Inductance (
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: LP
- Product Status: Active
- Operating Temperature: -40°C ~ 125°C
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Tolerance: ±20%
- Size / Dimension: 0.510" L x 0.370" W (12.95mm x 9.40mm)
- Height - Seated (Max): 0.205" (5.21mm)
- Type: -
- Material - Core: -
- Inductance: 68 µH
- Current Rating (Amps): 1.5 A
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 200mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: -
- Inductance Frequency - Test: 100 kHz
-
- Datasheet: BRVN-LP5137MT680
