LPC3935KT681
-
BRVN:BRVN-LPC3935KT681
-
MPN:LPC3935KT681
-
MFR:
-
Description:1005, 10%, T&R, 681 Inductance (

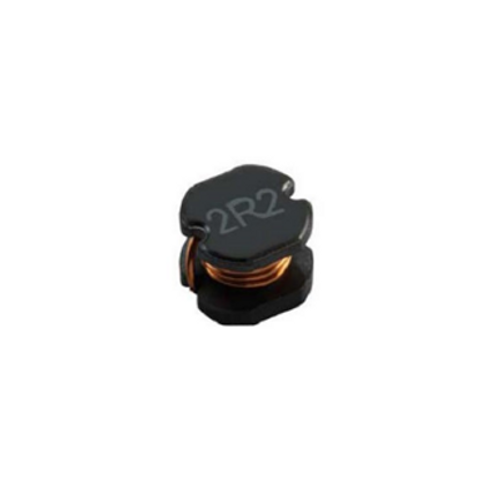

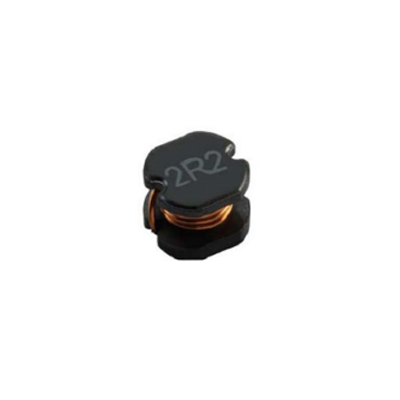

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1005, 10%, T&R, 681 Inductance (
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: LPC
- Product Status: Active
- Operating Temperature: -40°C ~ 125°C
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Tolerance: ±10%
- Size / Dimension: 0.394" L x 0.354" W (10.00mm x 9.00mm)
- Height - Seated (Max): 0.232" (5.90mm)
- Type: Wirewound
- Material - Core: -
- Inductance: 680 µH
- Current Rating (Amps): 280 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 2.25mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: -
- Inductance Frequency - Test: 1 kHz
-
- Datasheet: BRVN-LPC3935KT681
