LTF0201BT1N0
-
BRVN:BRVN-LTF0201BT1N0
-
MPN:LTF0201BT1N0
-
MFR:
-
Description:0201, 0.1%, 1N0 Inductance (nH)

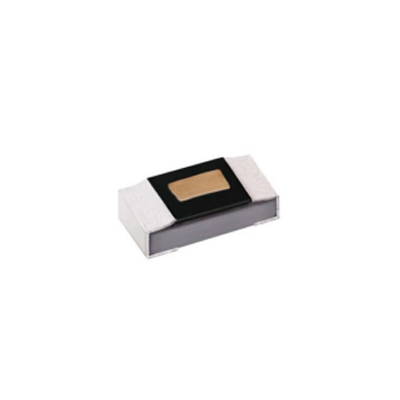

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 0201, 0.1%, 1N0 Inductance (nH)
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: LTF
- Product Status: Active
- Operating Temperature: -
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 201
- Tolerance: ±0.1nH
- Size / Dimension: 0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max): 0.011" (0.28mm)
- Type: Thin Film
- Material - Core: -
- Inductance: 1 nH
- Current Rating (Amps): 300 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 300mOhm Max
- Q @ Freq: 8 @ 500MHz
- Frequency - Self Resonant: 9GHz
- Ratings: -
- Inductance Frequency - Test: 500 MHz
-
- Datasheet: BRVN-LTF0201BT1N0
