LTF0402BT0N2
-
BRVN:BRVN-LTF0402BT0N2
-
MPN:LTF0402BT0N2
-
MFR:
-
Description:0402, 0.1%, 0N2 Inductance (nH)

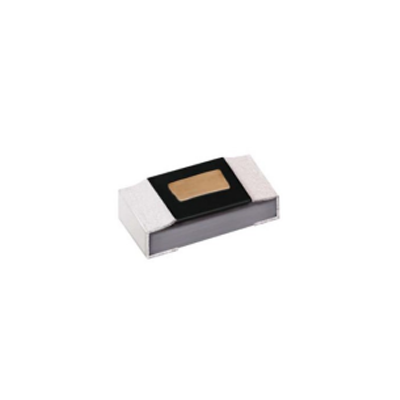

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 0402, 0.1%, 0N2 Inductance (nH)
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: LTF
- Product Status: Active
- Operating Temperature: -
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0402 (1005 Metric)
- Supplier Device Package: 402
- Tolerance: ±0.1nH
- Size / Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max): 0.015" (0.37mm)
- Type: Thin Film
- Material - Core: -
- Inductance: 0.2 nH
- Current Rating (Amps): 800 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 100mOhm Max
- Q @ Freq: 13 @ 500MHz
- Frequency - Self Resonant: 14GHz
- Ratings: -
- Inductance Frequency - Test: 500 MHz
-
- Datasheet: BRVN-LTF0402BT0N2
