LWW0805KT6N8
-
BRVN:BRVN-LWW0805KT6N8
-
MPN:LWW0805KT6N8
-
MFR:
-
Description:0805, 10%, 6N8 Inductance (nH)

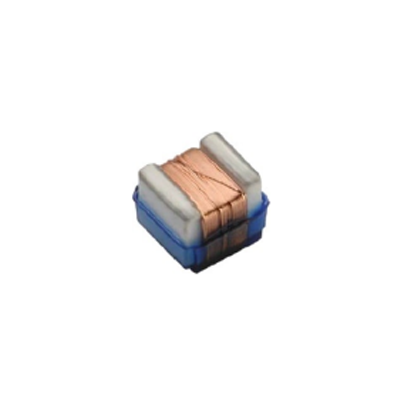

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 0805, 10%, 6N8 Inductance (nH)
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: *
- Product Status: Active
- Operating Temperature: -40°C ~ 125°C
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0805 (2012 Metric)
- Supplier Device Package: 805
- Tolerance: ±10%
- Size / Dimension: 0.090" L x 0.068" W (2.29mm x 1.73mm)
- Height - Seated (Max): 0.063" (1.60mm)
- Type: Wirewound
- Material - Core: Ceramic
- Inductance: 6.8 nH
- Current Rating (Amps): 600 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 110mOhm Max
- Q @ Freq: 50 @ 1GHz
- Frequency - Self Resonant: 5.5GHz
- Ratings: -
- Inductance Frequency - Test: 250 MHz
-
- Datasheet: BRVN-LWW0805KT6N8
