LWW1008JT3R9
-
BRVN:BRVN-LWW1008JT3R9
-
MPN:LWW1008JT3R9
-
MFR:
-
Description:1008, 5%, 3R9 Inductance (nH)

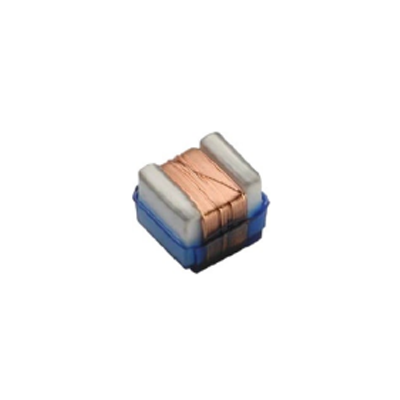

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1008, 5%, 3R9 Inductance (nH)
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: *
- Product Status: Active
- Operating Temperature: -40°C ~ 125°C
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008
- Tolerance: ±5%
- Size / Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max): 0.084" (2.13mm)
- Type: Wirewound
- Material - Core: Ceramic
- Inductance: 3.9 µH
- Current Rating (Amps): 260 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 3.6Ohm Max
- Q @ Freq: 18 @ 25MHz
- Frequency - Self Resonant: 100MHz
- Ratings: -
- Inductance Frequency - Test: 7.9 MHz
-
- Datasheet: BRVN-LWW1008JT3R9
