LWW1008JTH33N
-
BRVN:BRVN-LWW1008JTH33N
-
MPN:LWW1008JTH33N
-
MFR:
-
Description:1008, 5%, High Current and Q, 33

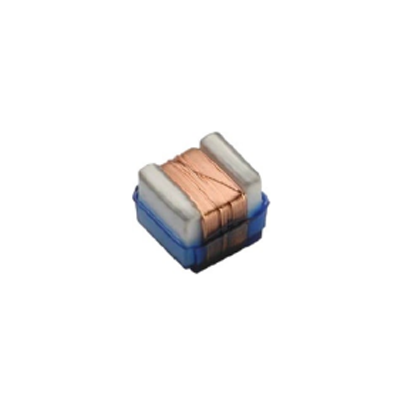

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1008, 5%, High Current and Q, 33
- Manufacturer: Stackpole Electronics, Inc.
- Length: 0 mm
- Series: *
- Product Status: Active
- Operating Temperature: -
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008
- Tolerance: ±5%
- Size / Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max): 0.084" (2.13mm)
- Type: Wirewound
- Material - Core: Ceramic
- Inductance: 33 nH
- Current Rating (Amps): 1:00 AM
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 140mOhm Max
- Q @ Freq: 60 @ 350MHz
- Frequency - Self Resonant: 1.6GHz
- Ratings: -
- Inductance Frequency - Test: 50 MHz
-
- Datasheet: BRVN-LWW1008JTH33N
