MCL1206FRGB1T

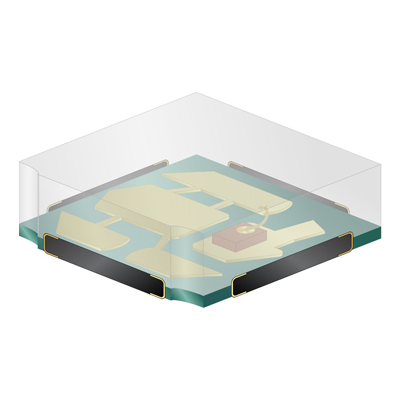

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: MULTI-COLOR LED 1206 FLAT LENS R
- Manufacturer: Venkel
- Length: 0 mm
- Series: MCL
- Product Status: Active
- Viewing Angle: 120°
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric)
- Color: Red, Green, Blue (RGB)
- Configuration: Common Anode
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 300mcd Red, 700mcd Green, 140mcd Blue
- Lens Style: Rectangle with Flat Top
- Lens Size: 2.00mm x 1.60mm
- Voltage - Forward (Vf) (Typ): 1.8V Red, 2.8V Green, 2.8V Blue
- Current - Test: 30mA
- Wavelength - Dominant: 623nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak: 632nm Red, 520nm Green, 468nm Blue
- Features: -
- Supplier Device Package: 1206 (3216 Metric)
- Size / Dimension: 3.20mm L x 1.60mm W
- Height (Max): 1.20mm
-
- Datasheet: BRVN-MCL1206FRGB1T
