MER1002CT_T0_00601

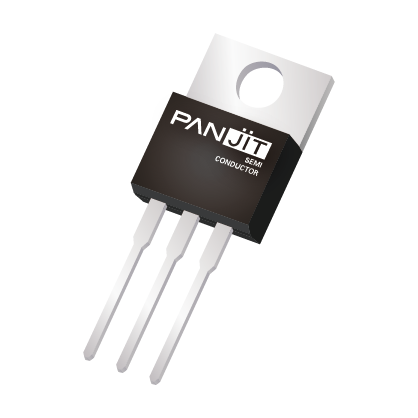

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 200V,SUPER FAST RECOVERY RECTIFI
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Current - Reverse Leakage @ Vr: 1 µA @ 200 V
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 5 A
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Operating Temperature - Junction: -55°C ~ 175°C
- Diode Configuration: 1 Pair Common Cathode
- Current - Average Rectified (Io) (per Diode): 5A
-
- Datasheet: BRVN-MER1002CT_T0_00601
-
- ECCN: EAR99
- HTSUS: 8541100000
