MET-46-T

  • BRVN:
    BRVN-MET-46-T
  • MPN:
    MET-46-T
  • MFR:
  • Description:
    TEL TRANS 600:600 3.0MADC
Datasheet
MET-46-T

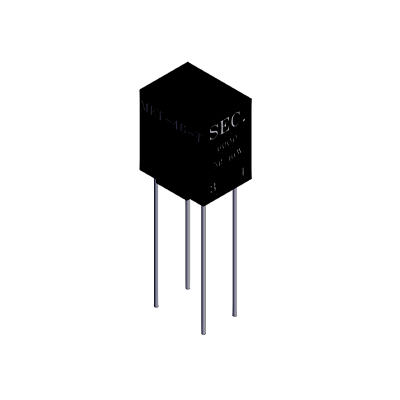

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: TEL TRANS 600:600 3.0MADC
  • Manufacturer: Triad Magnetics
  • Length: 0 mm
  • Series: MET
  • Product Status: Active
  • Mounting Type: Through Hole
  • Operating Temperature: -20°C ~ 85°C
  • Transformer Type: Data/Voice Coupling
  • Turns Ratio - Primary:Secondary: 1:01
  • Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
  • Height - Seated (Max): 0.465" (11.80mm)
  • Termination Style: PC Pin
  • Voltage - Isolation: 1000VRMS @ 1 Second
  • Approval Agency: -
  • Frequency Range: 300Hz ~ 3.5kHz
  • Impedance - Primary (Ohms): 600
  • Impedance - Secondary (Ohms): 600
  • DC Resistance (DCR) - Primary: 85Ohm
  • DC Resistance (DCR) - Secondary: 110Ohm
  • Frequency Response: ±2dB
  • Insertion Loss: -
  • Return Loss: -
  • Power Level: 50mW
