MHR-14-HUAL

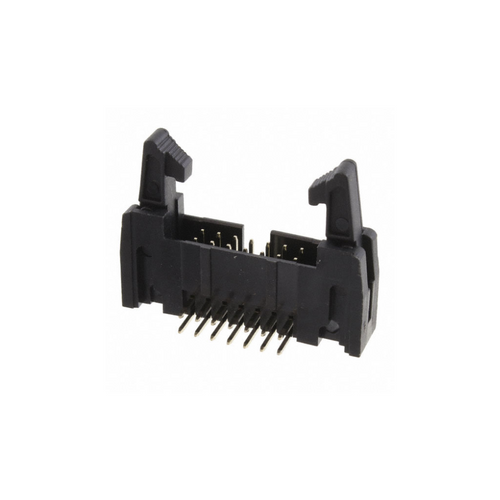

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN HEADER R/A 14POS 2.54MM
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: MHR
- Product Status: Active
- Features: Keying Slot
- Mounting Type: Through Hole, Right Angle
- Current Rating Amps: 3A
- Ingress Protection: -
- Operating Temperature: -55°C ~ 105°C
- Connector Type: Header
- Number of Rows: 2
- Termination: Solder
- Contact Type: Male Pin
- Number of Positions: 14
- Fastening Type: Latch Lock/Eject Hooks, Long
- Style: Board to Cable/Wire
- Voltage Rating: 250VAC
- Insulation Color: Black
- Material Flammability Rating: UL94 V-0
- Contact Material: Brass
- Number of Positions Loaded: All
- Pitch Mating: 0.100" (2.54mm)
- Row Spacing Mating: 0.100" (2.54mm)
- Contact Finish Mating: Gold
- Contact Finish Thickness Mating: Flash
- Insulation Height: 0.331" (8.40mm)
- Contact Length Post: 0.142" (3.60mm)
- Contact Finish Post: Gold
- Shrouding: Shrouded - 4 Wall
- Contact Length Mating: -
- Overall Contact Length: -
- Contact Shape: Square
- Insulation Material: Polybutylene Terephthalate (PBT)
-
- Datasheet: BRVN-MHR-14-HUAL
