PC156HR-24-S-06-T-LF
-
BRVN:BRVN-PC156HR-24-S-06-T-LF
-
MPN:PC156HR-24-S-06-T-LF
-
MFR:
-
Description:.156 Header

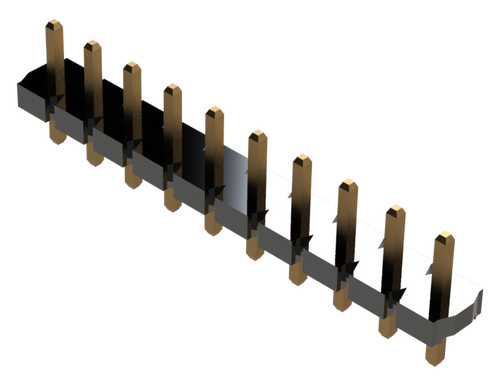

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 17 | $3.72 | $3.72 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .156 Header
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: PC156HR
- Product Status: Active
- Mounting Type: Through Hole, Right Angle
- Features: -
- Material Flammability Rating: UL94 V-0
- Voltage Rating: -
- Current Rating (Amps): 7.9A
- Number of Positions: 24
- Connector Type: Header
- Contact Type: Male Pin
- Style: Board to Board
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.125" (3.18mm)
- Contact Length - Post: 0.175" (4.45mm)
- Operating Temperature: -55°C ~ 105°C
- Contact Finish - Post: Tin
- Ingress Protection: -
- Shrouding: Unshrouded
- Contact Length - Mating: 0.320" (8.13mm)
- Overall Contact Length: -
- Contact Shape: Square
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
-
- Datasheet: BRVN-PC156HR-24-S-06-T-LF
