PC200S-08-S-02-T-LF
-
BRVN:BRVN-PC200S-08-S-02-T-LF
-
MPN:PC200S-08-S-02-T-LF
-
MFR:
-
Description:.200 Socket

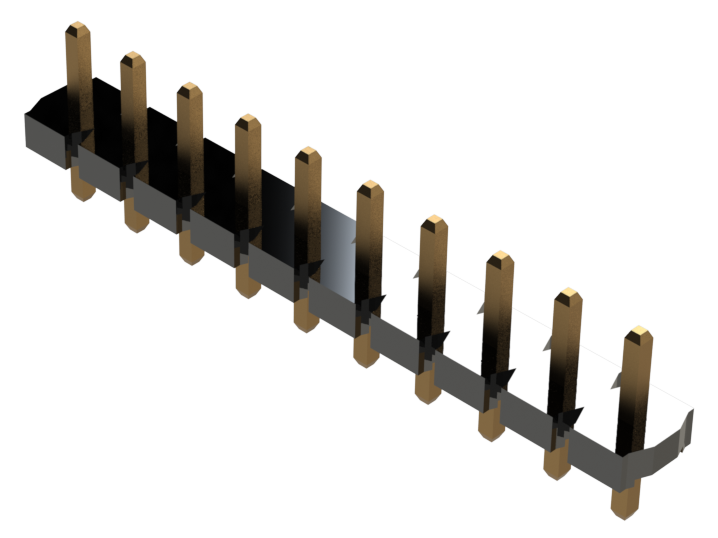

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 59 | $1.06 | $1.06 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .200 Socket
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: PC200S-02
- Product Status: Active
- Mounting Type: Through Hole
- Features: -
- Material Flammability Rating: UL94 V-0
- Voltage Rating: -
- Current Rating (Amps): 7.9A
- Number of Positions: 8
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions Loaded: All
- Pitch - Mating: 0.200" (5.08mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.350" (8.89mm)
- Contact Length - Post: 0.102" (2.60mm)
- Operating Temperature: -55°C ~ 105°C
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
-
- Datasheet: BRVN-PC200S-08-S-02-T-LF
