PD-SP2110-S5C21N
-
BRVN:BRVN-PD-SP2110-S5C21N
-
MPN:PD-SP2110-S5C21N
-
MFR:
-
Description:CONN PLUG FMALE 5POS SLDR CUP

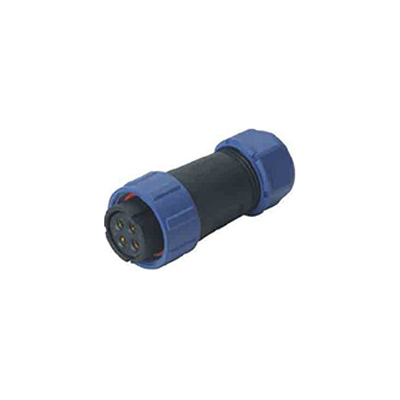

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONN PLUG FMALE 5POS SLDR CUP
- Manufacturer: Power Dynamics
- Length: 0 mm
- Series: -
- Product Status: Active
- Connector Type: Plug, Female Sockets
- Number of Positions: 5
- Mounting Type: Free Hanging (In-Line)
- Termination: Solder Cup
- Fastening Type: Threaded
- Features: Backshell, Coupling Nut
- Operating Temperature: -25°C ~ 85°C
- Current Rating (Amps): 30A
- Voltage Rating: 500VAC
- Material Flammability Rating: UL94 V-0
- Ingress Protection: IP68 - Dust Tight, Waterproof
- Color: Black, Blue
- Shell Size - Insert: -
- Shell Size, MIL: -
- Mounting Feature: -
- Orientation: Keyed
- Primary Material: Plastic
- Shell Material: Polyamide (PA66), Nylon 6/6
- Shell Finish: -
- Contact Finish - Mating: Gold
- Shielding: Unshielded
- Cable Opening: 0.276" ~ 0.472" (7.00mm ~ 12.00mm)
-
- Datasheet: BRVN-PD-SP2110-S5C21N
