PH-MVP-5365

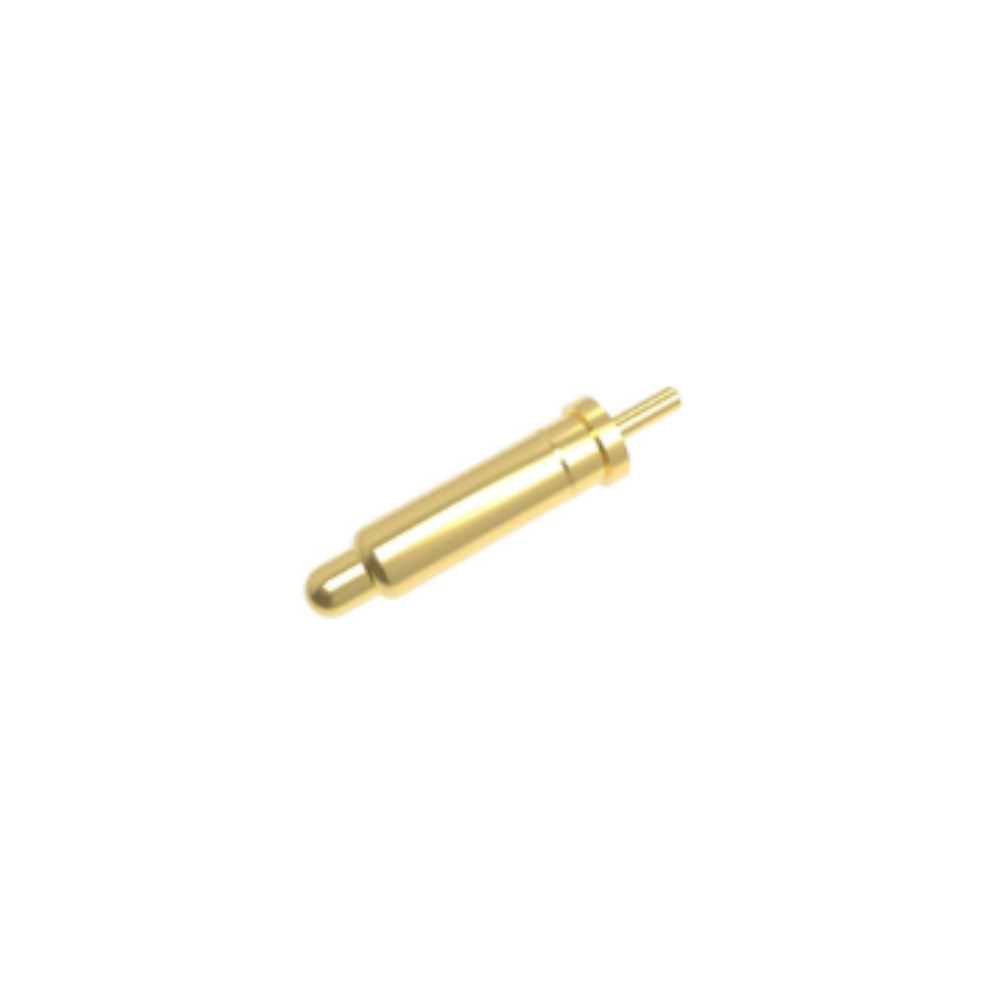

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CONTACT SPRING LOADED T/H GOLD
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: PH
- Product Status: Active
- Features: -
- Mounting Type: Through Hole
- Contact Finish: Gold
- Contact Finish Thickness: -
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Contact Material: Brass
- Maximum Working Height: 0.256" (6.50mm)
- Recommended Working Height: 0.256" (6.50mm)
- Minimum Working Height: 0.240" (6.10mm)
- Pad Layout Dimension: Circular - 0.071" (1.80mm) (TH)
- Operating Force Initial: 70gf
- Operating Force Mid Compression: -
- Plunger Size: 0.039" (1.00mm) Dia
- Mating Cycles: 1000000
-
- Datasheet: BRVN-PH-MVP-5365
