PJ-036A-SMT-TR

  • BRVN:
    BRVN-PJ-036A-SMT-TR
  • MPN:
    PJ-036A-SMT-TR
  • MFR:
  • Description:
    CONN PWR JACK 2X5.5MM SOLDER
PJ-036A-SMT-TR

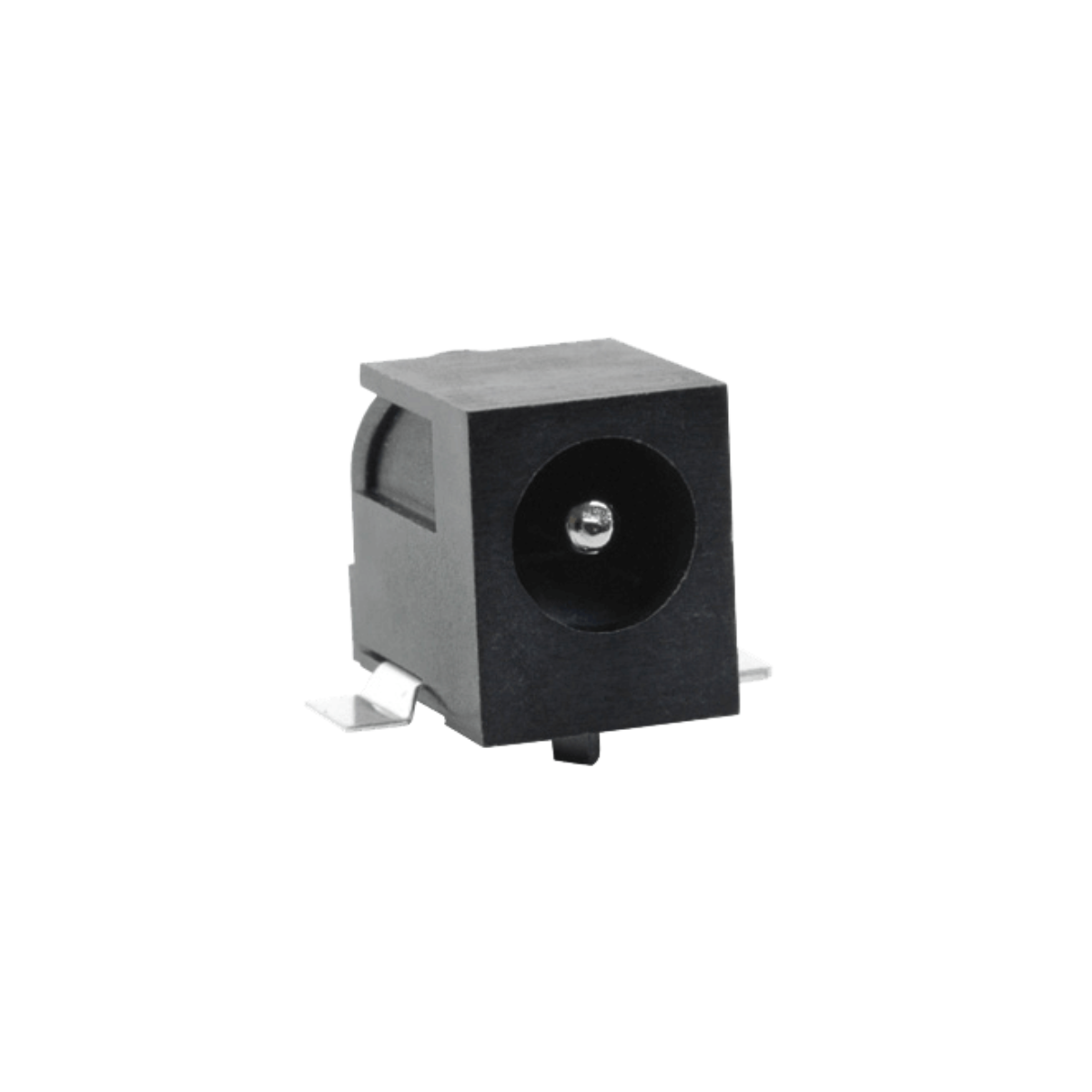

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: CONN PWR JACK 2X5.5MM SOLDER
  • Manufacturer: CUI Devices
  • Length: 0 mm
  • Series: -
  • Product Status: Obsolete
  • Mounting Type: Surface Mount, Right Angle
  • Features: -
  • Connector Type: Jack
  • Gender: Male
  • Mounting Feature: -
  • Termination: Solder
  • Ingress Protection: -
  • Operating Temperature: -25°C ~ 85°C
  • Current Rating Amps: 2.5 A
  • Voltage Rated: 16VDC
  • Shielding: Unshielded
  • Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
  • Actual Diameter: 0.079" (2.00mm ID), 0.248" (6.30mm OD)
  • Number of PositionsContacts: 2 Conductors, 3 Contacts
  • Internal Switchs: Single Switch, Normally Closed
  • Insulation Color: -
  • Mating LengthDepth: -
  • Material Flammability Rating: UL94 V-0
