PJ-098H

  • BRVN:
    BRVN-PJ-098H
  • MPN:
    PJ-098H
  • MFR:
  • Description:
    PWR JACK 0.6X5.0X7.5MM RT W/ SHI
PJ-098H

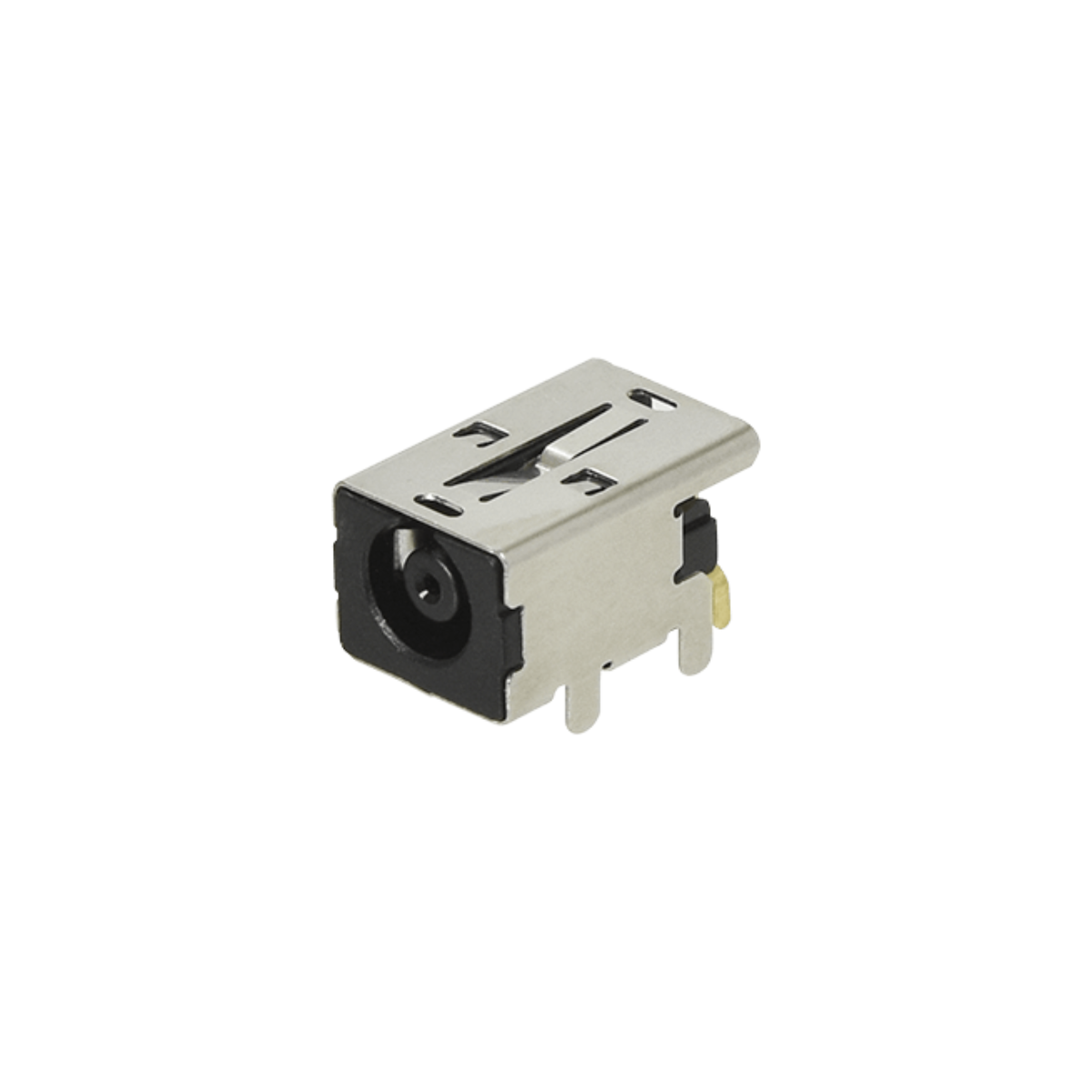

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: PWR JACK 0.6X5.0X7.5MM RT W/ SHI
  • Manufacturer: CUI Devices
  • Length: 0 mm
  • Series: -
  • Product Status: Obsolete
  • Mounting Type: Through Hole, Right Angle
  • Features: -
  • Connector Type: Jack
  • Gender: Female
  • Mounting Feature: -
  • Termination: Solder
  • Ingress Protection: -
  • Operating Temperature: -25°C ~ 85°C
  • Current Rating Amps: 6.5 A
  • Voltage Rated: 24VDC
  • Shielding: Shielded
  • Industry Recognized Mating Diameter: 0.75mm ID (0.030"), 2.80mm OD (0.110")
  • Actual Diameter: 0.030" (0.75mm ID), 0.110" (2.80mm OD)
  • Number of PositionsContacts: 3 Conductors, 3 Contacts
  • Internal Switchs: Does Not Contain Switch
  • Insulation Color: -
  • Mating LengthDepth: 0.315" (8.00mm)
  • Material Flammability Rating: UL94 V-0
