PJA3414_R1_00001

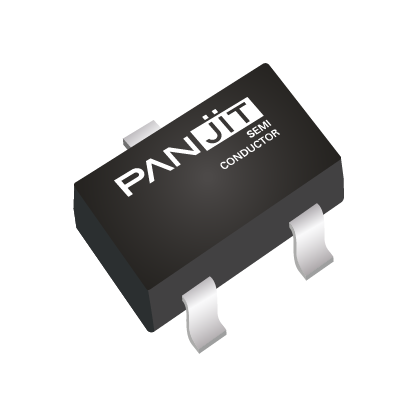

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: SOT-23, MOSFET
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1800V, 4.5V
- Rds On (Max) @ Id, Vgs: 36mOhm @ 5.2A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.1 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 396 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1250W (Ta)
-
- Datasheet: BRVN-PJA3414_R1_00001
