PJD4NA60_L2_00001
-
BRVN:BRVN-PJD4NA60_L2_00001
-
MPN:PJD4NA60_L2_00001
-
MFR:
-
Description:600V N-CHANNEL MOSFET

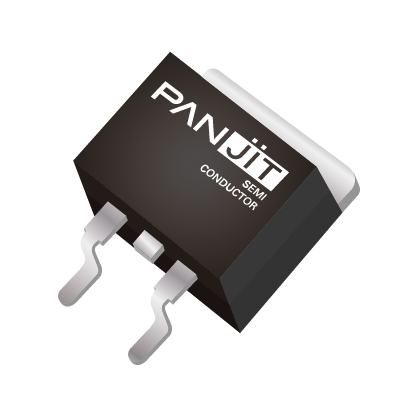

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 600V N-CHANNEL MOSFET
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Not For New Designs
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.4Ohm @ 2A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11.1 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 450 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 77W (Tc)
