PJD80N03_L2_00001

  • BRVN:
    BRVN-PJD80N03_L2_00001
  • MPN:
    PJD80N03_L2_00001
  • MFR:
  • Description:
    30V N-CHANNEL ENHANCEMENT MODE M
Datasheet

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: 30V N-CHANNEL ENHANCEMENT MODE M
  • Manufacturer: PANJIT
  • Length: 0 mm
  • Product Status: Active
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount

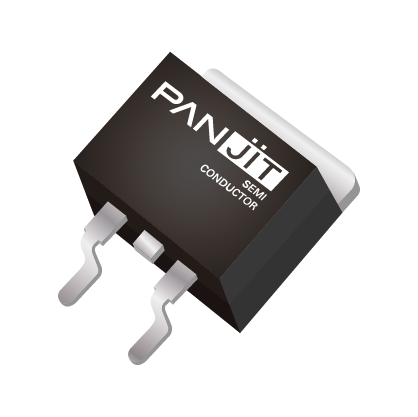

  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: TO-252
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30 V
  • Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 80A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 6mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id: 2500V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 4.5 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 1323 pF @ 25 V
  • FET Feature: -
  • Power Dissipation (Max): 2W (Ta), 55W (Tc)
