PJL9480_R2_00001

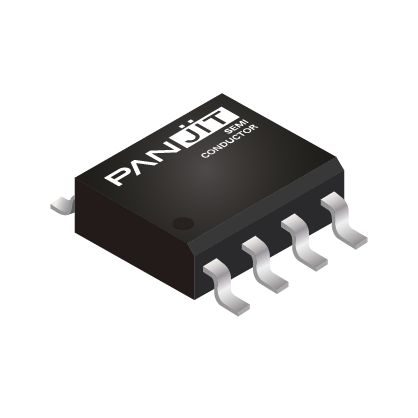

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 150V N-CHANNEL ENHANCEMENT MODE
- Manufacturer: PANJIT
- Length: 0 mm
- Series: NFET-150ICMN
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOP
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 65mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 29.5 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 1764 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 2500W (Ta)
-
- Datasheet: BRVN-PJL9480_R2_00001
-
- ECCN: EAR99
- HTSUS: 8541210000
