PJL9811_R2_00001

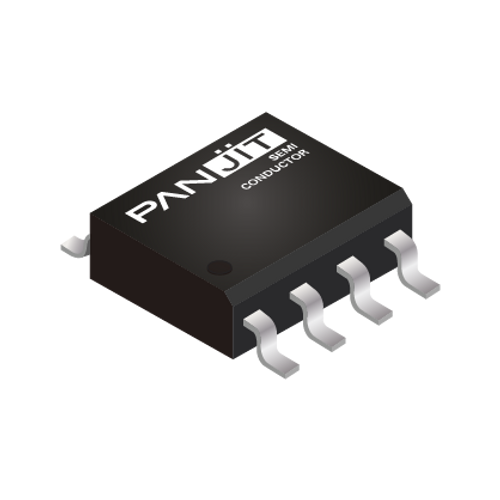

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 30V DUAL P-CHANNEL ENHANCEMENT M
- Manufacturer: PANJIT
- Length: 0 mm
- Series: NFET-30ICMP
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOP
- FET Type: 2 P-Channel (Dual)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 7.8A (Ta)
- Rds On (Max) @ Id, Vgs: 21mOhm @ 7.8A, 10V
- Vgs(th) (Max) @ Id: 2500V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 1169pF @ 15V
- FET Feature: Standard
- Power - Max: 1250W (Ta)
-
- Datasheet: BRVN-PJL9811_R2_00001
-
- ECCN: EAR99
- HTSUS: 8541210000
