PJL9812_R2_00001
-
BRVN:BRVN-PJL9812_R2_00001
-
MPN:PJL9812_R2_00001
-
MFR:
-
Description:30V DUAL N-CHANNEL ENHANCEMENT M

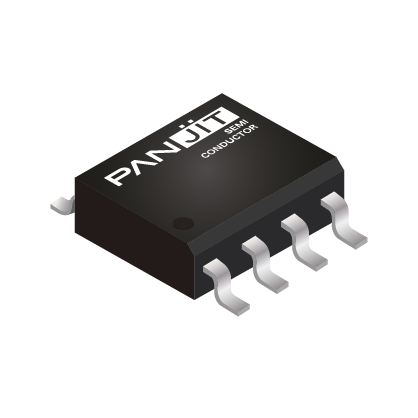

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 30V DUAL N-CHANNEL ENHANCEMENT M
- Manufacturer: PANJIT
- Length: 0 mm
- Series: NFET-30ICMN
- Product Status: Obsolete
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOP
- FET Type: 2 N-Channel (Dual)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
- Rds On (Max) @ Id, Vgs: 35mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.1nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 421pF @ 15V
- FET Feature: Standard
- Power - Max: 2W (Ta)
-
- ECCN: EAR99
- HTSUS: 8541210000
