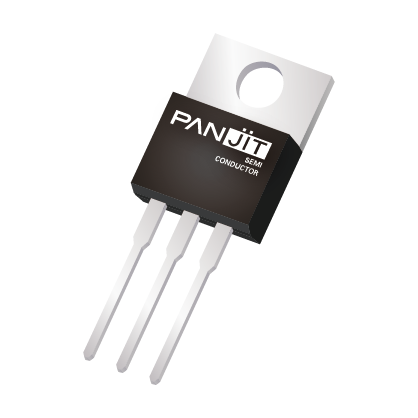

PJP60R390E_T0_00001

  • BRVN:
    BRVN-PJP60R390E_T0_00001
  • MPN:
    PJP60R390E_T0_00001
  • MFR:
  • Description:
    600V N-CHANNEL SUPER JUNCTION MO
Datasheet

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: 600V N-CHANNEL SUPER JUNCTION MO
  • Manufacturer: PANJIT
  • Length: 0 mm
  • Product Status: Not For New Designs
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600 V
  • Current - Continuous Drain (Id) @ 25°C: 1.5A (Ta), 11A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 390mOhm @ 3.8A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 32 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 531 pF @ 25 V
  • FET Feature: -
  • Power Dissipation (Max): 2W (Ta), 124W (Tc)
