PJQ4602_R1_00001

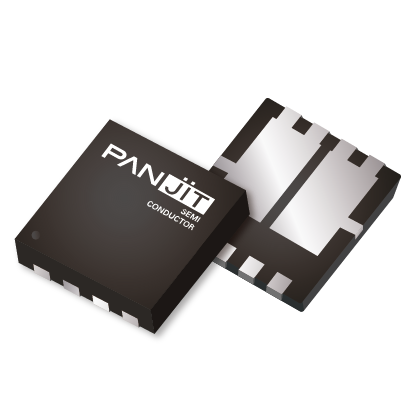

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

Manufacturer: PANJIT
Length: 0 mm
Product Status: Not For New Designs
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Supplier Device Package: DFN3030B-8
FET Type: N and P-Channel Complementary
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 6.4A (Ta), 18.5A (Tc), 6.4A (Ta), 18A (Tc)
Rds On (Max) @ Id, Vgs: 28mOhm @ 6A, 10V, 31mOhm @ 4A, 10V
Vgs(th) (Max) @ Id: 2.1V @ 250µA, 2500V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 7.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 343pF @ 15V, 870pF @ 15V
FET Feature: Standard
Power - Max: 2W (Ta), 17.8W (Tc)
