PJQ4606_R1_00001

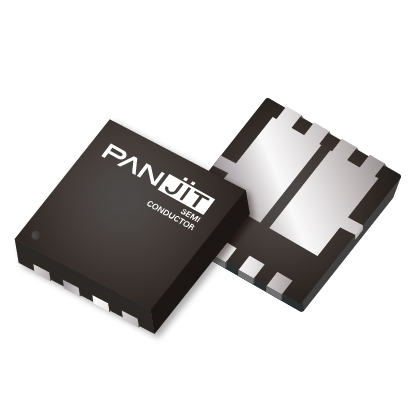

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

Manufacturer: PANJIT
Length: 0 mm
Product Status: Not For New Designs
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerWDFN
Supplier Device Package: DFN3030B-8
FET Type: N and P-Channel Complementary
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 7.6A (Ta), 23A (Tc), 6.7A (Ta), 20A (Tc)
Rds On (Max) @ Id, Vgs: 19mOhm @ 8A, 10V, 30mOhm @ 4A, 10V
Vgs(th) (Max) @ Id: 2500V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 4.8nC @ 4.5V, 7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds: 429pF @ 25V, 846pF @ 15V
FET Feature: Standard
Power - Max: 2W (Ta), 18W (Tc)
