PJQ5458A_R2_00001

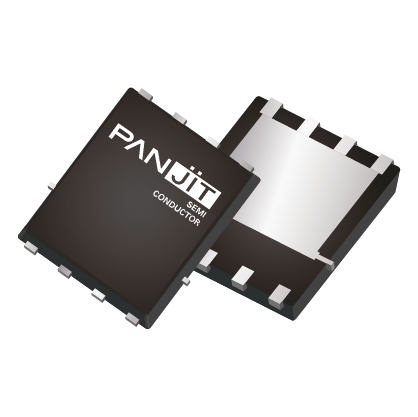

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 60V N-CHANNEL ENHANCEMENT MODE M
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Not For New Designs
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerVDFN
- Supplier Device Package: DFN5060-8
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 4.4A (Ta), 16A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id: 2500V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 815 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 27W (Tc)
-
- Datasheet: BRVN-PJQ5458A_R2_00001
