PJQ5844-AU_R2_000A1

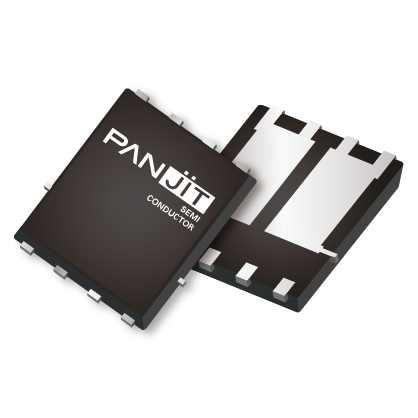

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 40V DUAL N-CHANNEL ENHANCEMENT M
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: DFN5060B-8
- FET Type: 2 N-Channel (Dual)
- Drain to Source Voltage (Vdss): 40V
- Current - Continuous Drain (Id) @ 25°C: 10A (Ta), 45A (Tc)
- Rds On (Max) @ Id, Vgs: 8mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 2500V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 1759pF @ 25V
- FET Feature: Standard
- Power - Max: 2W (Ta), 38.5W (Tc)
-
- Datasheet: BRVN-PJQ5844-AU_R2_000A1
