PJS6414_S1_00001

  • BRVN:
    BRVN-PJS6414_S1_00001
  • MPN:
    PJS6414_S1_00001
  • MFR:
  • Description:
    20V N-CHANNEL ENHANCEMENT MODE M
Datasheet

Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.

  • Description: 20V N-CHANNEL ENHANCEMENT MODE M
  • Manufacturer: PANJIT
  • Length: 0 mm
  • Product Status: Active
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount

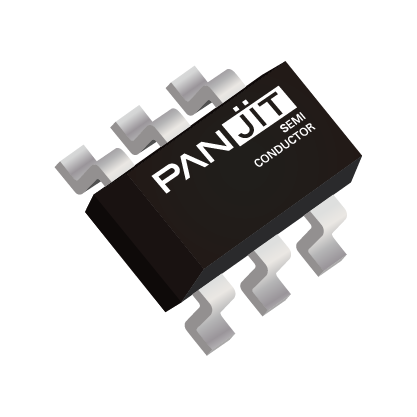

  • Package / Case: SOT-23-6
  • Supplier Device Package: SOT-23-6
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20 V
  • Current - Continuous Drain (Id) @ 25°C: 6.6A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 1800V, 4.5V
  • Rds On (Max) @ Id, Vgs: 36mOhm @ 6.6A, 4.5V
  • Vgs(th) (Max) @ Id: 1.2V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 4.1 nC @ 4.5 V
  • Vgs (Max): ±12V
  • Input Capacitance (Ciss) (Max) @ Vds: 400 pF @ 10 V
  • FET Feature: -
  • Power Dissipation (Max): 2W (Ta)
