PJS6830_S1_00001

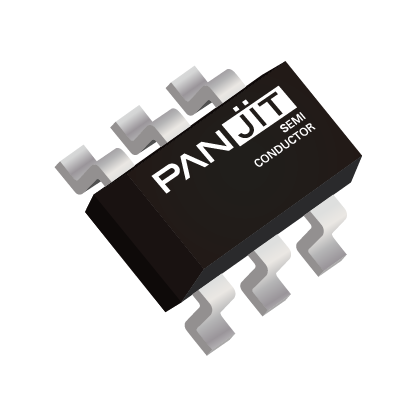

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 20V DUAL N-CHANNEL ENHANCEMENT M
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Not For New Designs
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
- FET Type: 2 N-Channel (Dual)
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 2A (Ta)
- Rds On (Max) @ Id, Vgs: 150mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1800nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 92pF @ 10V
- FET Feature: Standard
- Power - Max: 1250W (Ta)
-
- Datasheet: BRVN-PJS6830_S1_00001
