PJS6833_S2_00001

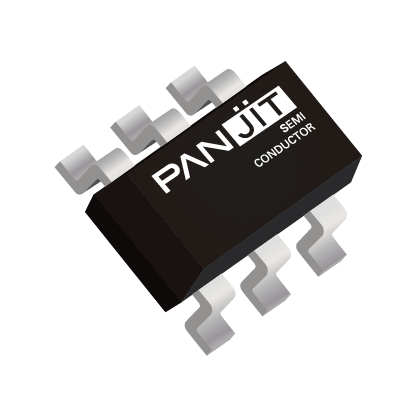

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 30V P-CHANNEL ENHANCEMENT MODE M
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
- FET Type: 2 P-Channel (Dual)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 1.1A (Ta)
- Rds On (Max) @ Id, Vgs: 370mOhm @ 1.1A, 4.5V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.6nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 125pF @ 15V
- FET Feature: Standard
- Power - Max: 1250W (Ta)
-
- Datasheet: BRVN-PJS6833_S2_00001
