PJW1NA50_R2_00001
-
BRVN:BRVN-PJW1NA50_R2_00001
-
MPN:PJW1NA50_R2_00001
-
MFR:
-
Description:500V N-CHANNEL MOSFET

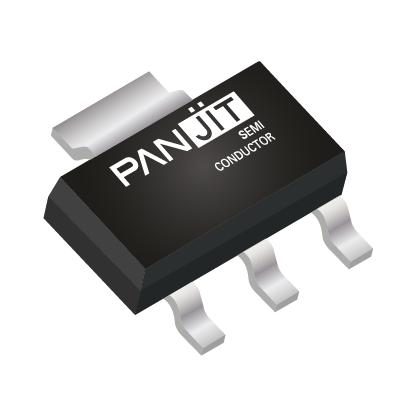

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 500V N-CHANNEL MOSFET
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Obsolete
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 300mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 9Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.2 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 95 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.3W (Tc)
