PJX8839_R1_00001

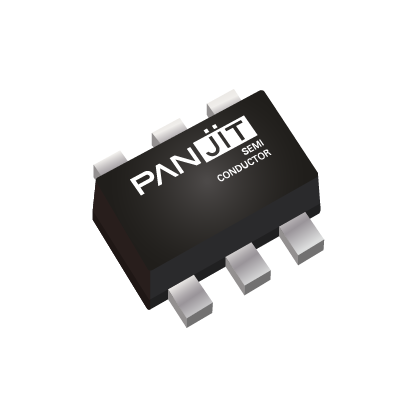

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 60V P-CHANNEL ENHANCEMENT MODE M
- Manufacturer: PANJIT
- Length: 0 mm
- Product Status: Active
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
- FET Type: 2 P-Channel (Dual)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 200mA (Ta)
- Rds On (Max) @ Id, Vgs: 4Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 2500V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.1nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 51pF @ 25V
- FET Feature: Standard
- Power - Max: 300mW (Ta)
-
- Datasheet: BRVN-PJX8839_R1_00001
