PMA-LS-DC1-Q2S

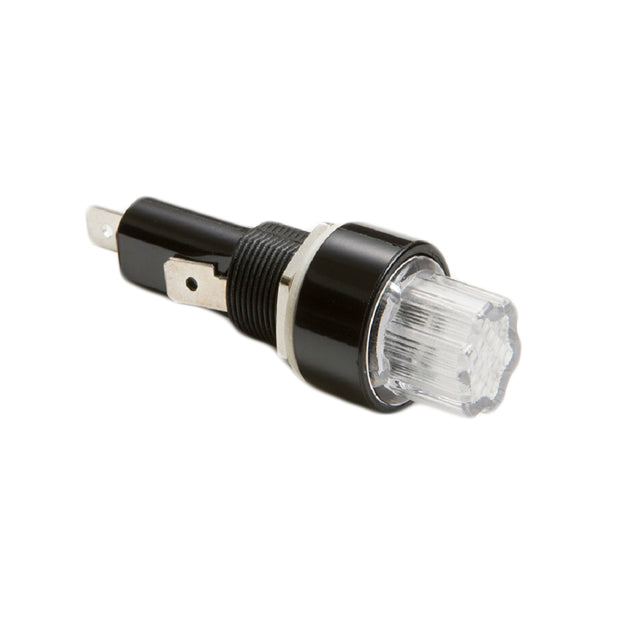

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 1-1/4"X1/4"-LED WARNING/SCREW,
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: -
- Product Status: Active
- Current Rating (Amps): 20 A
- Mounting Type: Panel Mount
- Fuse Type: Cartridge
- Fuse Size: 0.25" Dia x 1.26" L (6.35mm x 32mm)
- For Use With/Related Products: 3AG, 1/4" x 1-1/4" (SFE-20)
- Fuseholder Type: Holder
- Number of Circuits: 1
- Voltage: 32V
- Orientation: Horizontal and Vertical
- Termination Style: Solder, Quick Connect - 0.250" (6.3mm)
- Contact Material: Copper
- Contact Finish: Silver
-
- Datasheet: BRVN-PMA-LS-DC1-Q2S
