PSDB0860S1_T0_00001

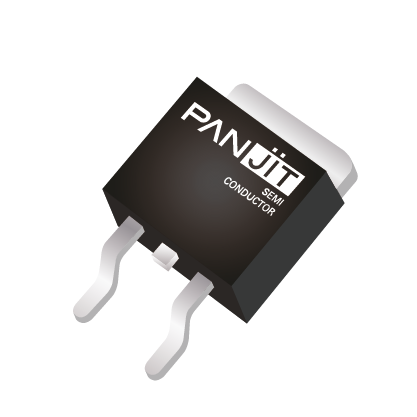

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DIODE GEN PURP 600V 8A TO263
- Manufacturer: PANJIT
- Length: 0 mm
- Series: 600FRED-Speedy
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
- Current - Reverse Leakage @ Vr: 100 µA @ 600 V
- Voltage - Forward (Vf) (Max) @ If: 2.3 V @ 8 A
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 8A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 55 ns
- Capacitance @ Vr, F: -
- Operating Temperature - Junction: -55°C ~ 150°C
-
- Datasheet: BRVN-PSDB0860S1_T0_00001
-
- ECCN: EAR99
- HTSUS: 8541100000
