PSSHS-505-D-04-H-AP-LF
-
BRVN:BRVN-PSSHS-505-D-04-H-AP-LF
-
MPN:PSSHS-505-D-04-H-AP-LF
-
MFR:
-
Description:.050 x .050 Socket

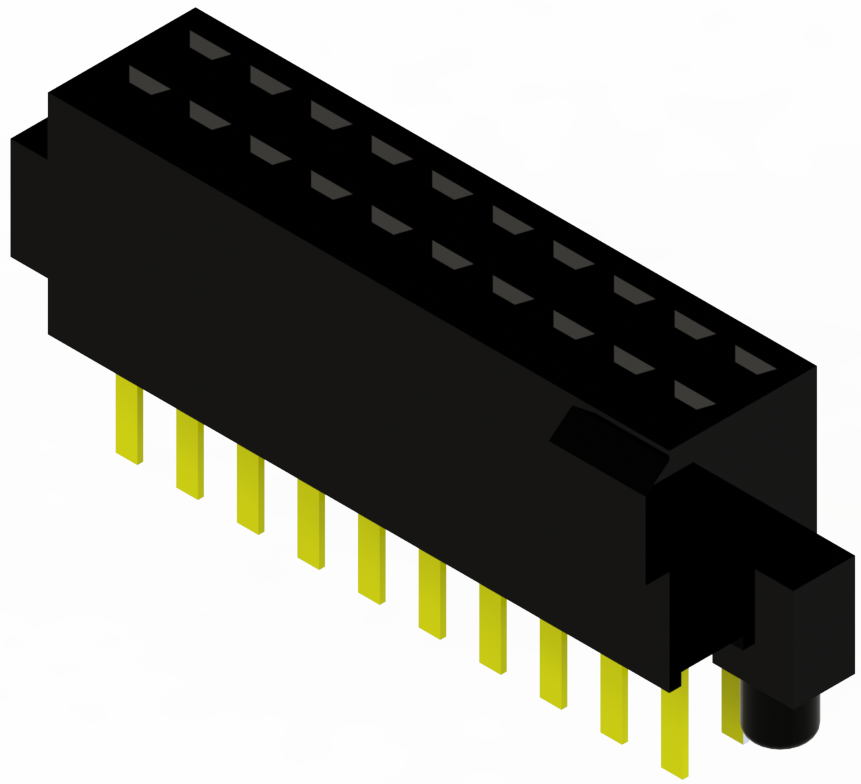

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 121 | $0.52 | $0.52 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .050 x .050 Socket
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: PSSHS-5
- Product Status: Active
- Mounting Type: Through Hole
- Features: Board Lock
- Material Flammability Rating: -
- Voltage Rating: -
- Current Rating (Amps): 1A
- Number of Positions: 10
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Insulation Color: Black
- Insulation Height: 0.173" (4.40mm)
- Contact Length - Post: 0.120" (3.05mm)
- Operating Temperature: -40°C ~ 105°C
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
-
- Datasheet: BRVN-PSSHS-505-D-04-H-AP-LF
